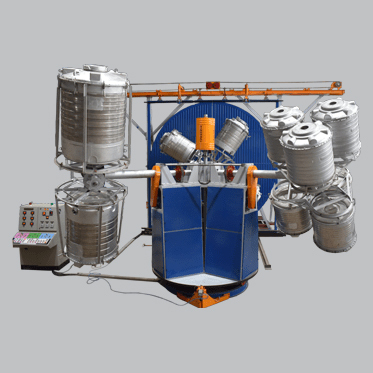

Three Arm Type(One Offset Arm & Two Straight Arms) Bi-Axial Machine
2000000.00 - 3500000.00 INR
Product Details:
- Type Three Arm Type Bi-Axial Machine
- Material Mild Steel / Stainless Steel
- Capacity 500 Ltrs to 10,000 Ltrs Ltr
- Computerized No
- Automatic Grade Automatic
- Power 35 kW (approx.) Watt (w)
- Voltage 415 V AC Three Phase Volt (v)
- Click to View more
X
Three Arm Type(One Offset Arm & Two Straight Arms) Bi-Axial Machine Price And Quantity
- 2000000.00 - 3500000.00 INR
- 1 Unit
Three Arm Type(One Offset Arm & Two Straight Arms) Bi-Axial Machine Product Specifications
- 500 Ltrs to 10,000 Ltrs Ltr
- 4000 mm Millimeter (mm)
- Approx. 12,000 kg Kilograms (kg)
- Three Arm Type Bi-Axial Machine
- 35 kW (approx.) Watt (w)
- Industrial Grey / Custom
- Customizable as per requirement
- Automatic
- 9000 mm x 5000 mm x 4800 mm Millimeter (mm)
- 415 V AC Three Phase Volt (v)
- Mild Steel / Stainless Steel
- No
Three Arm Type(One Offset Arm & Two Straight Arms) Bi-Axial Machine Trade Information
- 16-20 Week
Product Description
- Three Arm Bi-Axial Rotational Moulding Machine
- One Offset Arm & Two Straight Arms
- Capacity L Arm One tank 1000 Lit, Straight Arm Two Tank 500 Lit, Typical Cycle Time 20 Min
- Fully Automatic Italian Burner, Diesel or LPG or Natural Gas
- Fuel Consumption Cycle 12.0 Liter Diesel or 9.6 Kg of LPG
- Electric Load 16.0 H.P.
- Process Temperature 210 oC
- Production in 24 Hrs 60,000 Lit.
- Size Of Machine L 9.0 Mtr x W 8 Mtr x H 4.7 Mtr
Precision and Flexibility in Moulding
Designed with three fully independent arms, this bi-axial machine allows simultaneous operation of different moulding stages, enhancing overall output. The PLC-based control system and digital touch screen interface enable fine adjustments, ensuring optimal performance whether moulding small or large plastic products.
Robust Build with Custom Options
Built from high-grade mild steel or stainless steel, the machine is sturdy enough for industrial demands. Customers can tailor the capacity (500 to 10,000 Ltrs) and dimensions to suit varied production needs. Its oven diameter of 4000 mm and customizable sizes ensure compatibility with multiple applications.
Enhanced Safety and Maintenance
Safety is prioritized with features like emergency stop and overload protection. The user-friendly design provides easy access for maintenance, reducing downtime. Automatic cooling and low-maintenance requirements help keep the production process steady and efficient.
FAQ's of Three Arm Type Bi-Axial Machine:
Q: How does the three-arm configuration benefit production efficiency?
A: The independent arm design allows each arm to operate separately, enabling simultaneous moulding, heating, and cooling processes. This reduces cycle times and increases productivity by ensuring continuous workflow with minimal delays.Q: What is the maximum temperature the machine can reach, and how is it controlled?
A: The machine can reach up to 300C, with precise control managed by a PLC-based system and an intuitive digital touch screen interface. This ensures accurate temperature monitoring and stable operations throughout the moulding process.Q: When is it necessary to adjust the rotation speed, and how is this achieved?
A: Adjusting the rotation speed (up to 12 rpm) is essential when moulding different shapes, sizes, or thicknesses of plastic products. The speed is easily controlled via the digital touch screen, allowing operators to fine-tune settings based on mould requirements.Q: Where can this bi-axial machine be installed, and what are its power requirements?
A: This machine is suitable for installation in industrial manufacturing environments. It operates on 415 V AC three-phase power and requires approximately 35 kW, ensuring compatibility with standard factory setups.Q: What is the step-by-step process for rotational moulding on this machine?
A: The process begins by placing raw plastic resin into the mould, which is then mounted on the heavy-duty platform. The machine rotates the mould inside the oven, heating it up to 300C to melt and distribute the material evenly. Cooling is automated with air or water, and finished products are released after 30-45 minutes.Q: How does the machine ensure minimal maintenance requirements?
A: The design prioritizes easy access to components for routine checks and maintenance. Advanced safety systems, automated cooling, and robust construction reduce wear and tear, lowering the overall need for frequent servicing.Q: What are the benefits of using this bi-axial machine for plastic product manufacturing?
A: Users benefit from high versatility, efficient cycle times, customizable size and capacity, enhanced safety features, and user-friendly operation, making it an excellent choice for producing tanks, containers, drums, and bins at scale.Tell us about your requirement
